Product Description

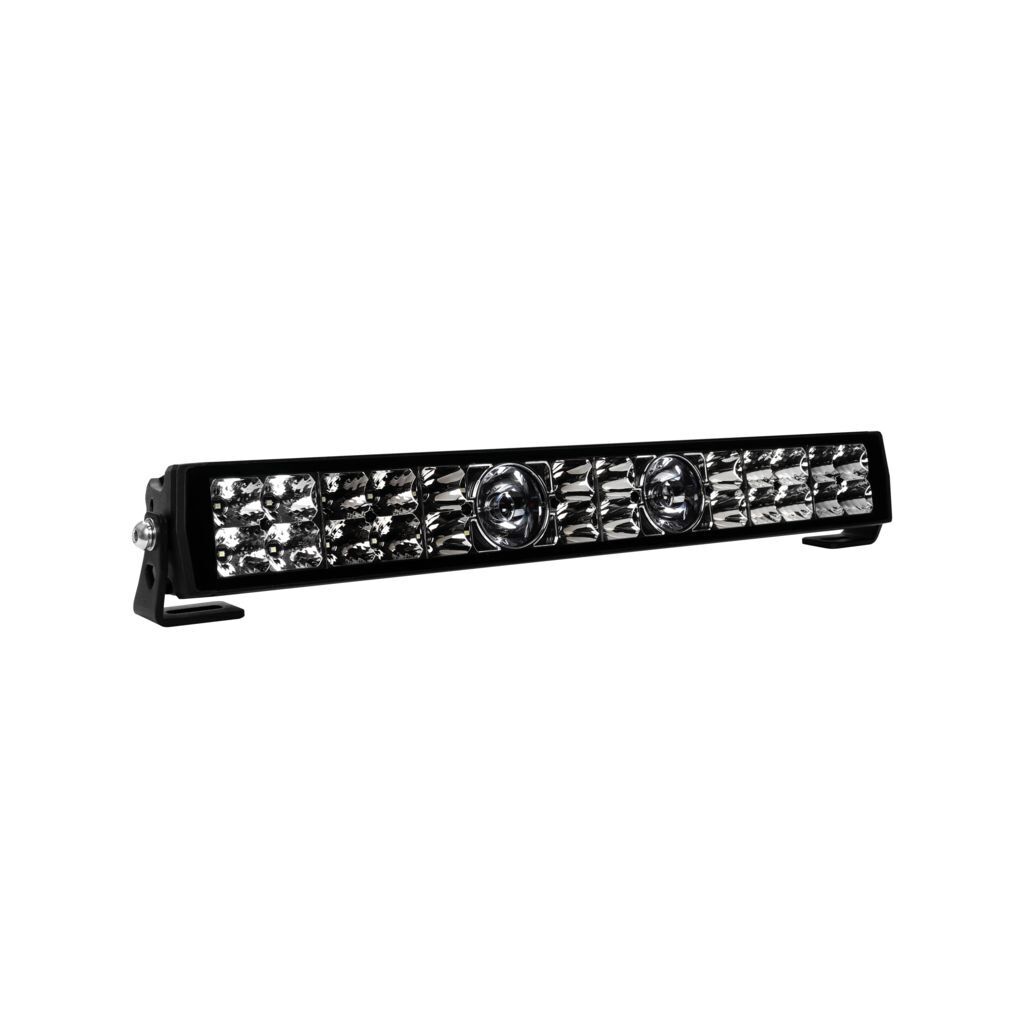

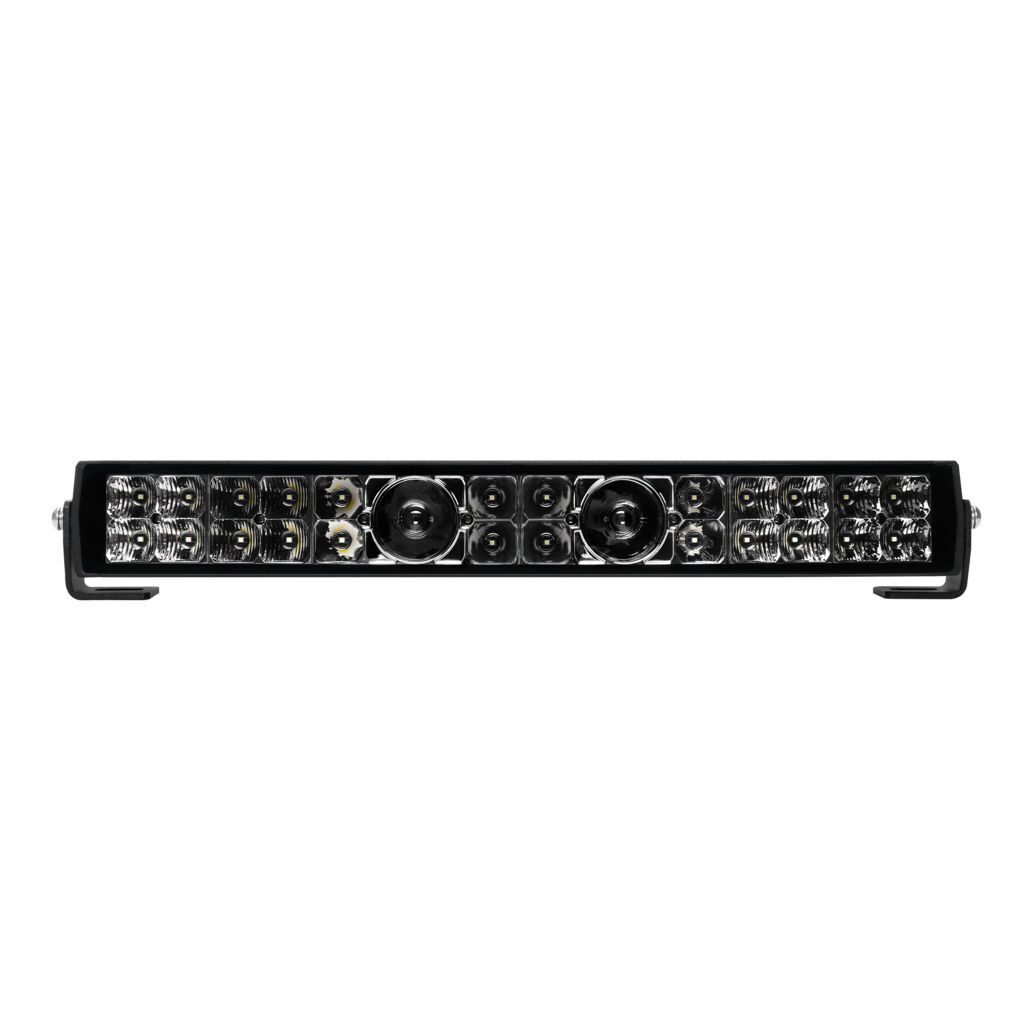

Ignite 20 inch Dual Row Laser LED Lightbar – Combo Beam

Take your lighting to the extreme with the Ignite 20" Dual Row Laser LED Lightbar. Engineered for superior visibility, this powerhouse combines cutting-edge Laser and LED technology to deliver unparalleled performance on and off the road.

Unmatched Performance & Durability

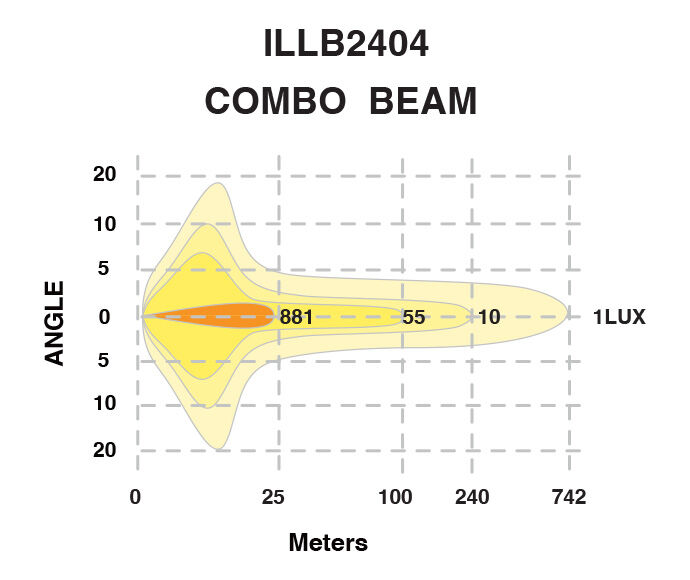

  • Combo Beam Pattern – 8° Laser Pencil Beam for long-distance illumination & 20° LED Flood Beam for wide coverage.
  • Unrivaled Brightness – Producing an impressive 11,500 raw lumens and 9,800 effective lumens at 6,000K color temperature.
  • Extreme Range – 1 Lux @ 742m with a staggering 551,000 cd Peak Beam Intensity.
  • Premium Build Quality – Housed in black anodized, polyester powder-coated 6063 aluminium with an integrated heat-sink for optimal performance.
  • Heavy-Duty Protection – IP68 & IP69K-rated, making it UV, water, and shock-resistant (15G) with anti-rust, corrosion, and freezing resistance.
  • Advanced Optics – Polycarbonate Side Reflector Focusing Optic Drive Technology with a Lexan Polycarbonate Lens (>95% light transmittance).
  • Built to Last – 50,000-hour LED lifespan and backed by a 5-year warranty.

Smart & Versatile Design

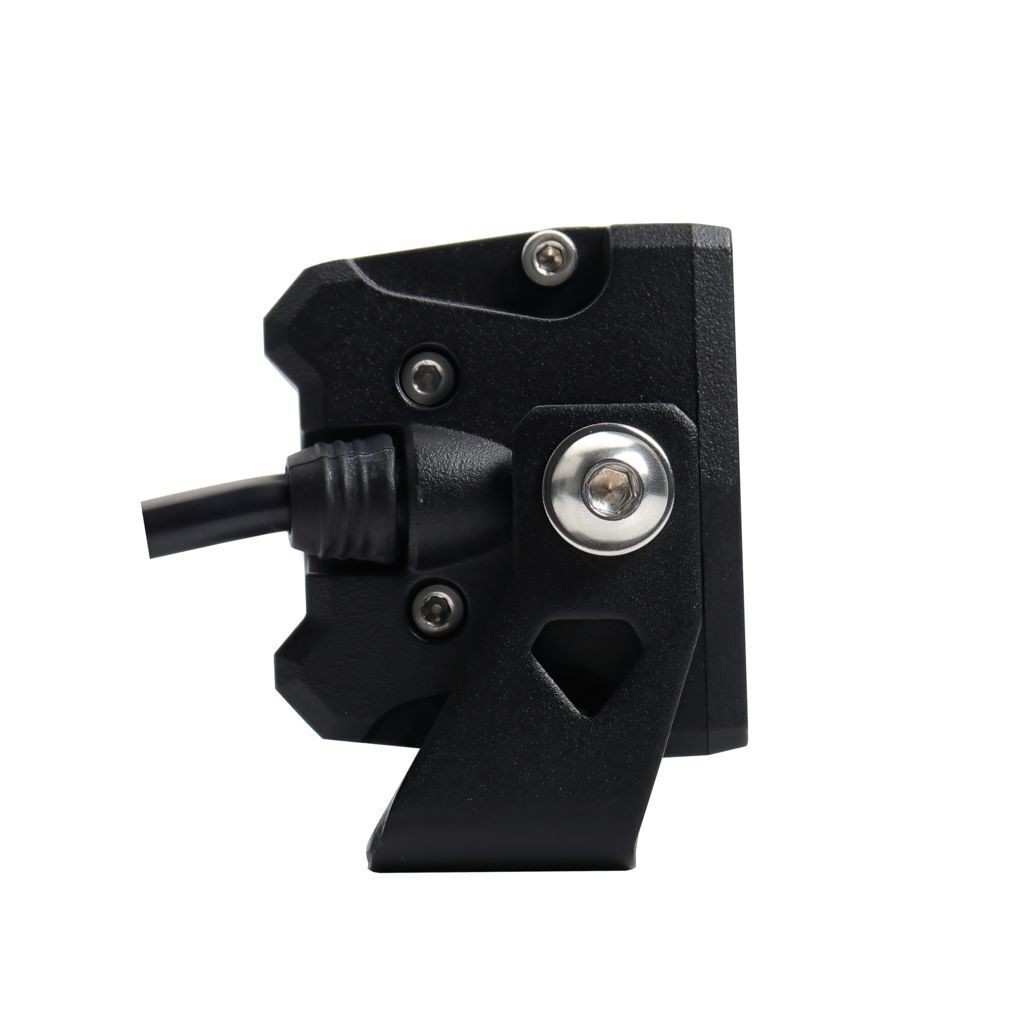

  • Dual Mounting Options – Includes 6063 aluminium bottom mount brackets and SUS201 stainless steel side mount brackets.
  • Plug & Play Connectivity – Equipped with a 500mm lead and 2-pin Deutsch plug.
  • Power Efficient – 136W total power draw with 9.8A @ 12V / 4.8A @ 24V.
  • Safety Features – Integrated Electronic Thermal Management (ETM), over & under voltage protection, and reverse polarity protection.

Tough Enough for Any Environment

Withstands temperatures from -40°C to +60°C, making it the perfect companion for harsh terrains and extreme conditions.

ECE R112, R10 & CE Approved

Light up the night with Ignite's ultimate laser-LED combo!

Upgrade your 4x4 lighting today!

Product Specifications

SKU ILLB2404
Brand Ignite
