Product Description

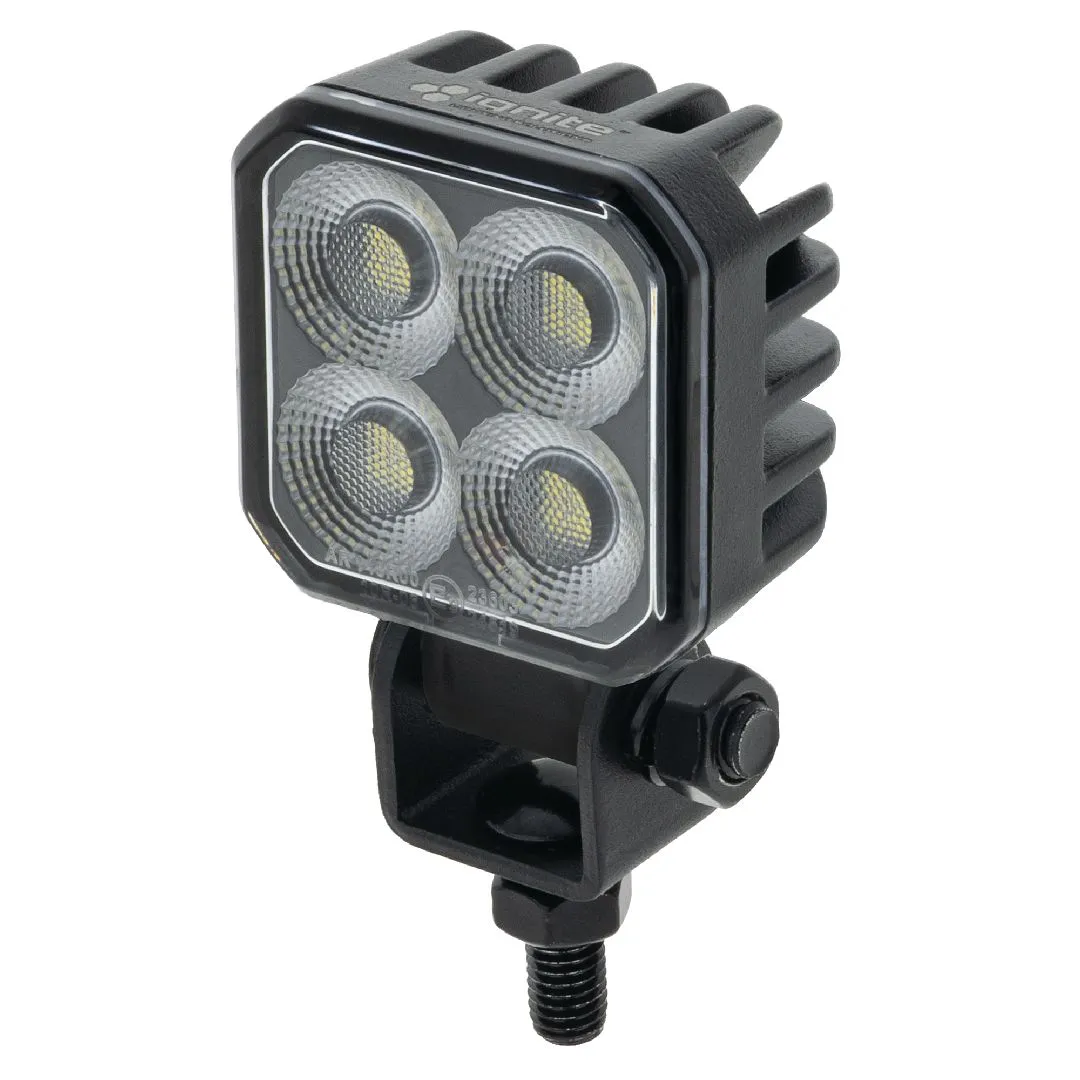

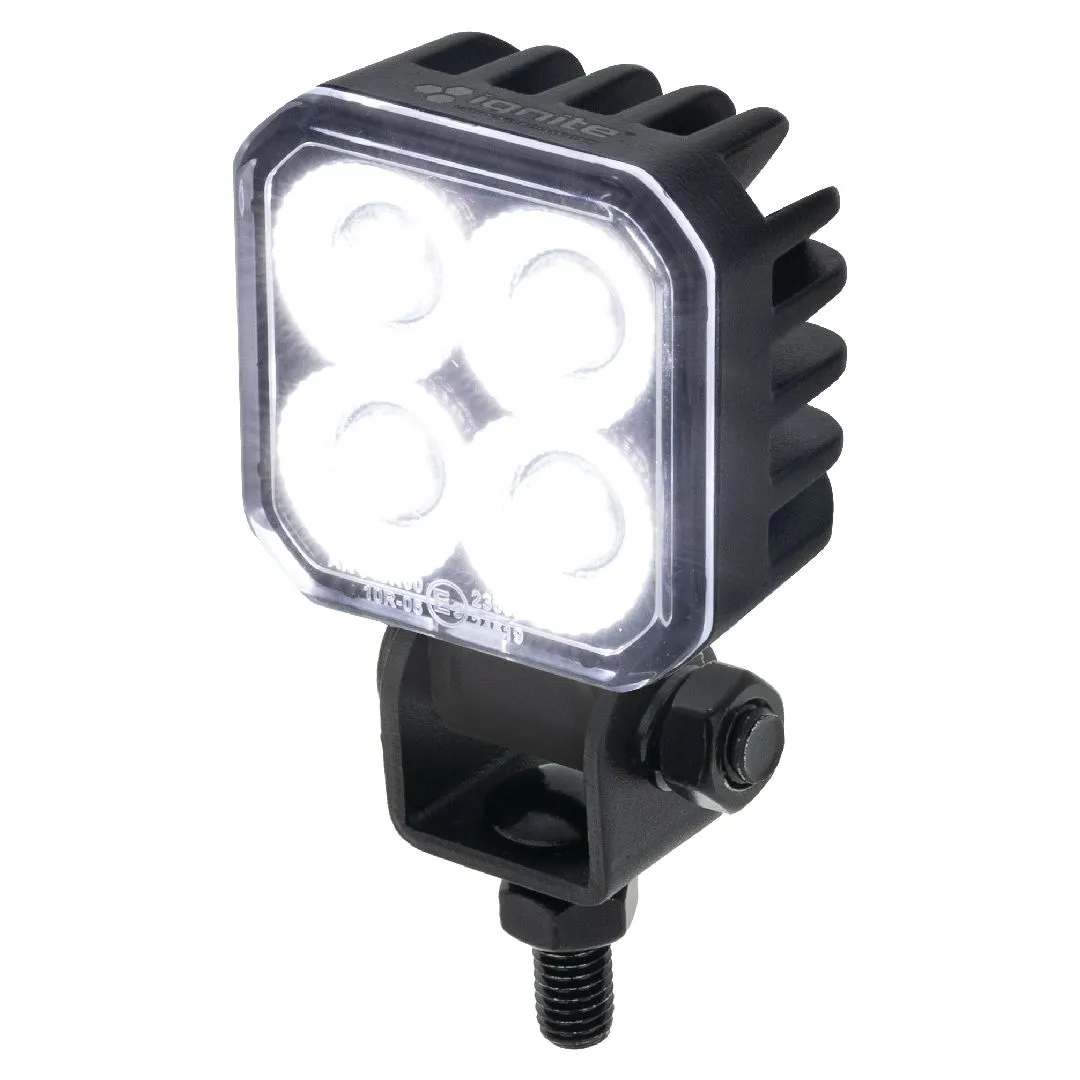

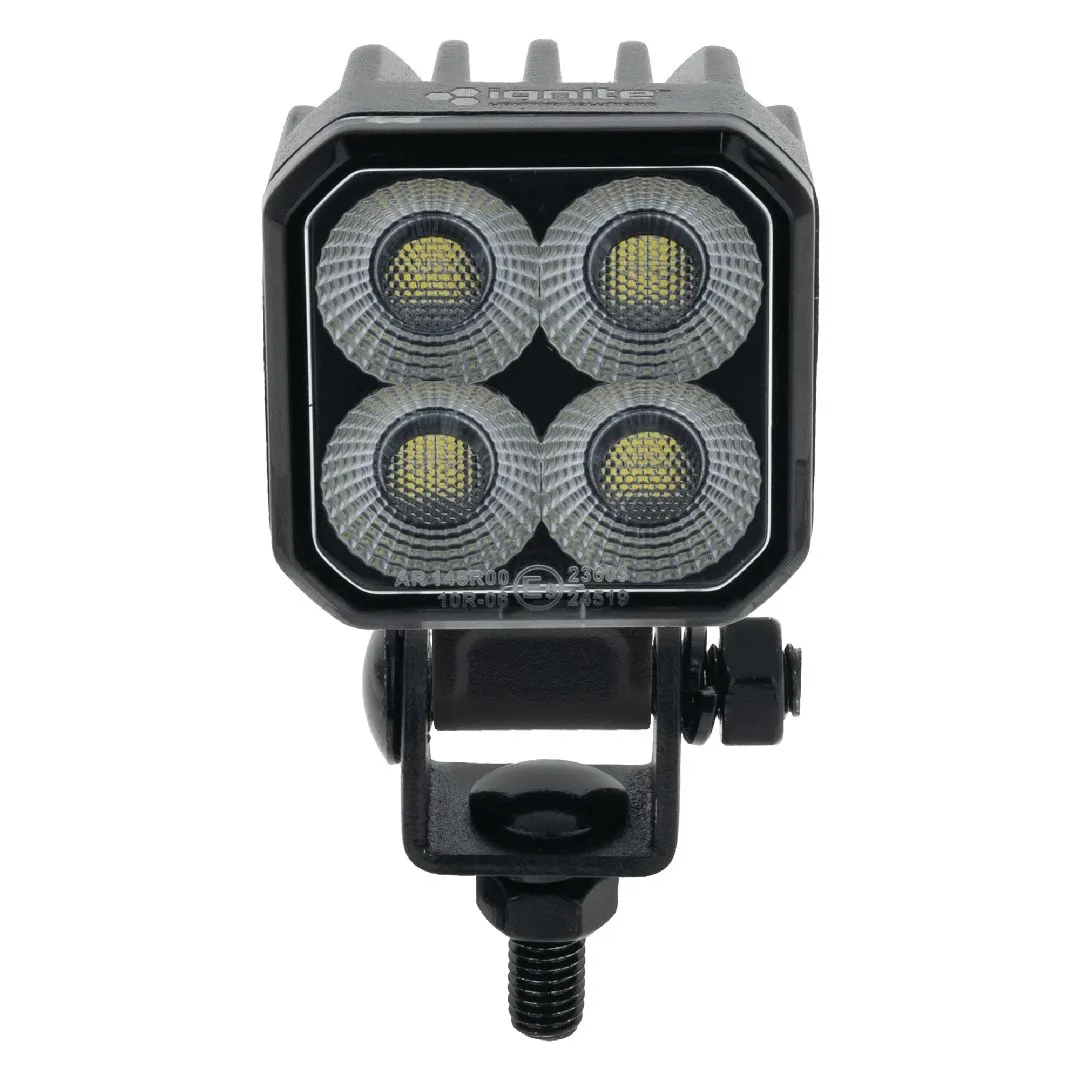

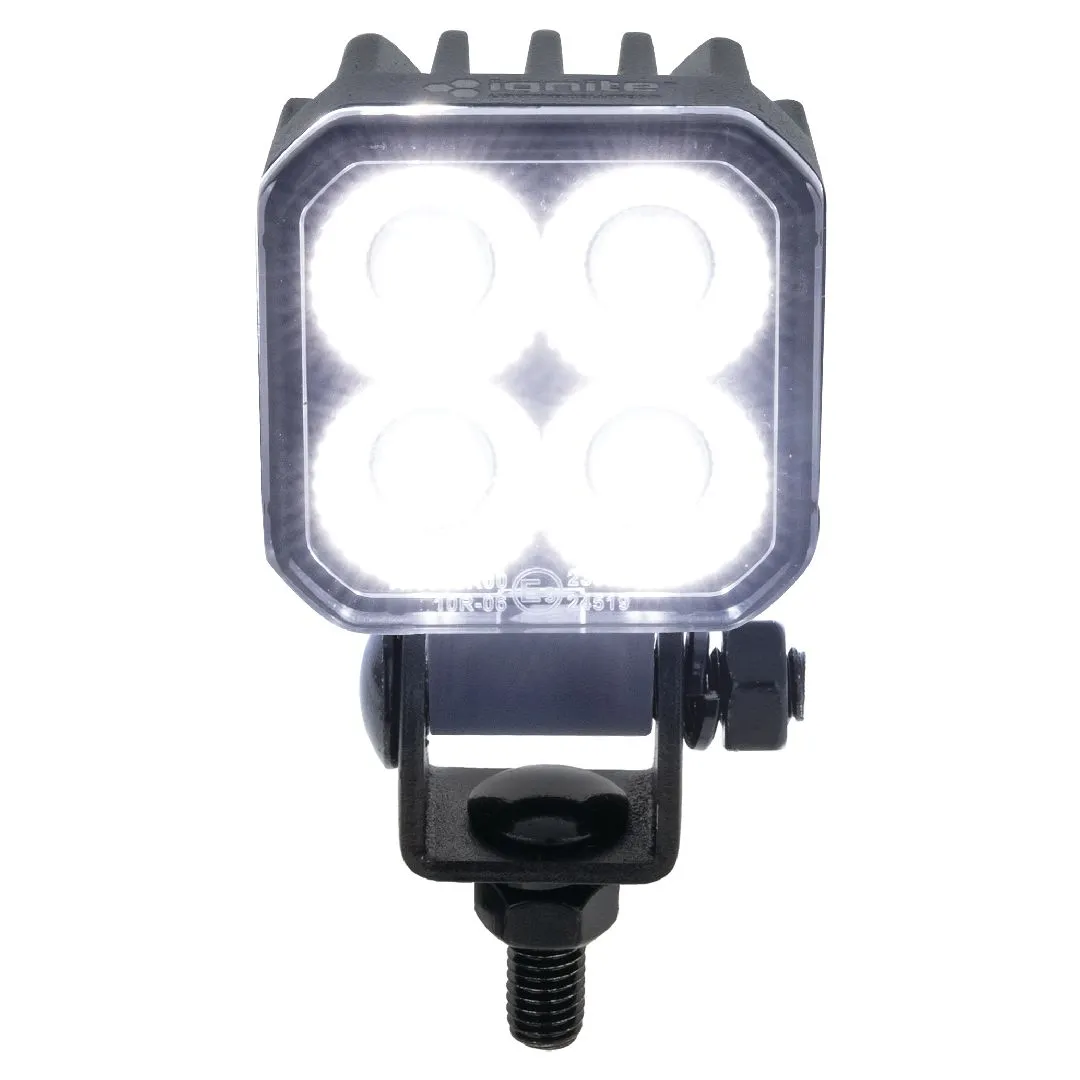

The Ignite 2" Square LED Worklamp delivers powerful area lighting from a compact housing, making it an ideal addition to 4WDs, work vehicles, trucks, machinery and agricultural equipment. Featuring four high-intensity Philips LEDs, the lamp produces 2,400 raw lumens and 1,365 effective lumens with a wide 60° flood beam.

The compact square housing is manufactured from durable die-cast aluminium with an integrated heat sink and Electronic Thermal Management for reliable performance. A frameless polycarbonate lens, stainless steel mounting hardware and IP68/IP69K protection make it well suited to harsh outdoor and automotive environments.

Key Features

  • 16W output with 4 x 4W high-intensity Philips LEDs
  • 2,400 raw lumens / 1,365 effective lumens
  • 60° flood beam for broad area illumination
  • 6000K crisp white light output
  • 10–32V multi-voltage operation
  • 1 lux at 29 metres
  • Integrated Electronic Thermal Management (ETM)
  • Compact die-cast aluminium housing with integrated heat sink
  • Frameless polycarbonate lens and optical reflector system
  • Stainless steel single-bolt mounting bracket and hardware

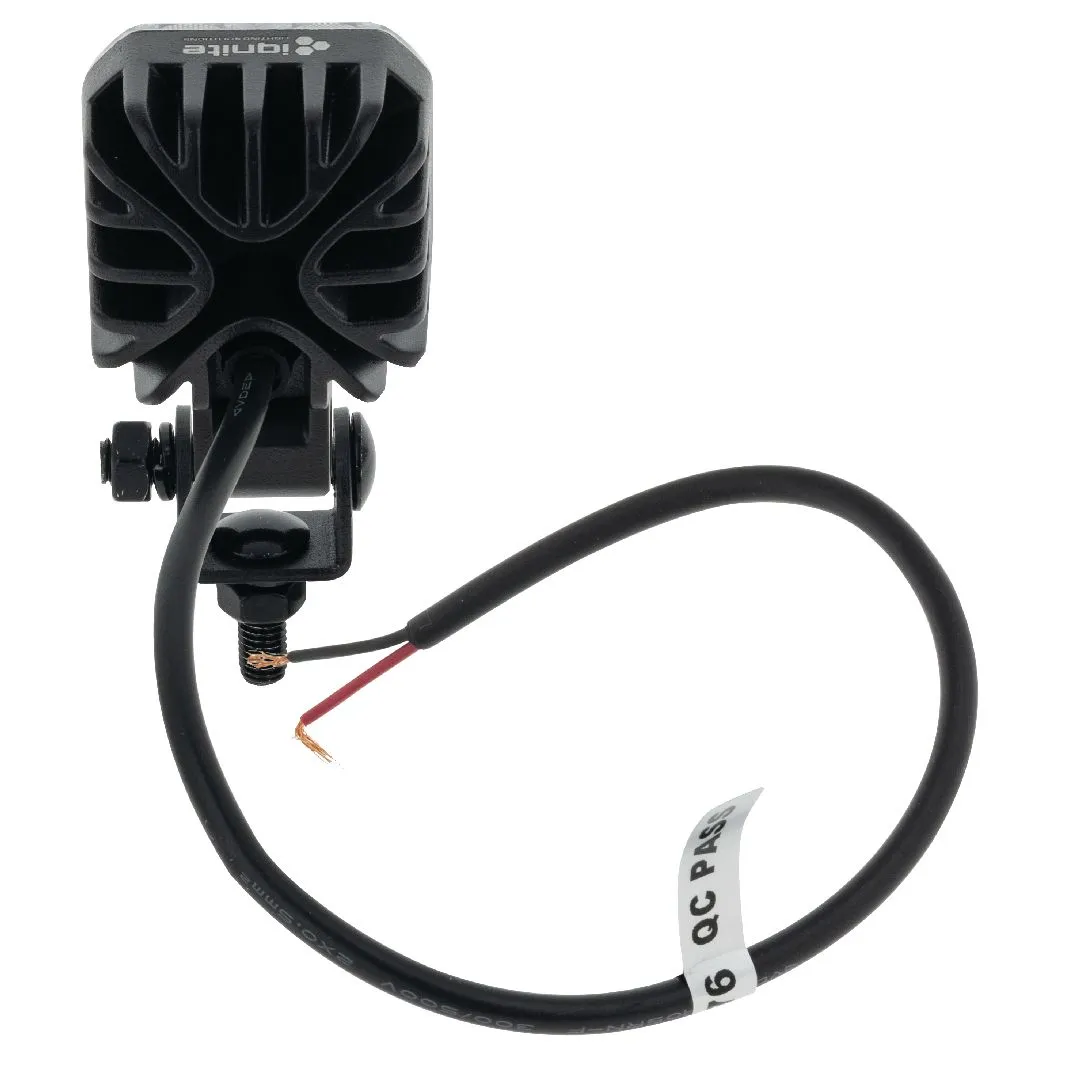

  • 300mm lead with two bare wires
  • Over/under voltage and reverse polarity protection
  • UV, water and shock resistant
  • 20,000-hour LED lifespan
  • ECE R10 and CE approved, EMC compliant and CISPR 25 Class 3 certified
  • IP68 and IP69K rated
  • 3 year warranty

Specifications

  • Voltage: 10–32V
  • Power: 16W
  • Raw Lumens: 2,400
  • Effective Lumens: 1,365
  • Colour Temperature: 6000K
  • Current Draw: 1.33A @ 12V / 0.66A @ 24V
  • Peak Beam Intensity: 816cd
  • Dimensions: 51mm (W) x 101mm (H) x 35mm (D)
  • Operating Temperature: -40°C to +60°C

Product Specifications

SKU IWL0404SF
Barcode # 9356659851571
Brand Ignite
