Product Description

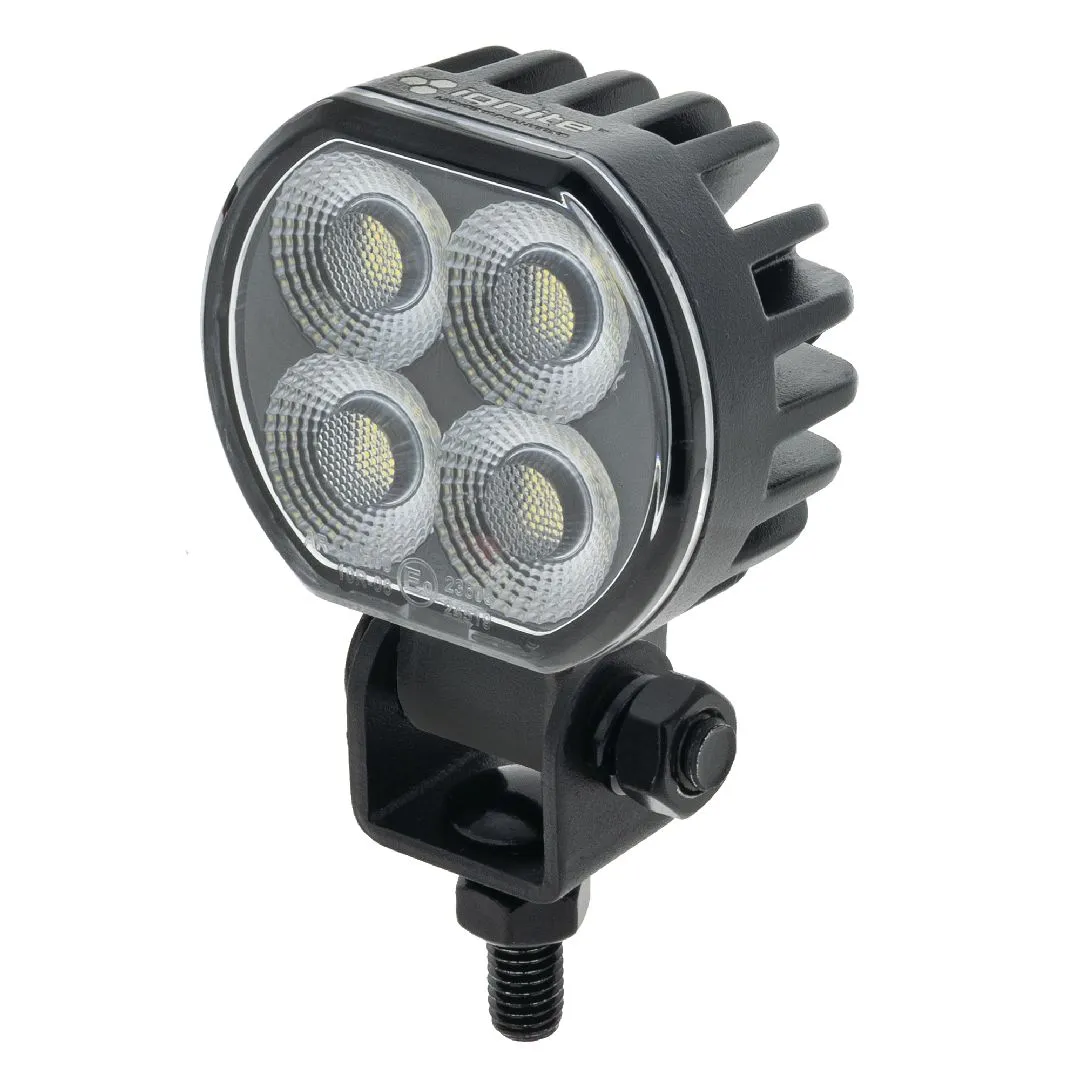

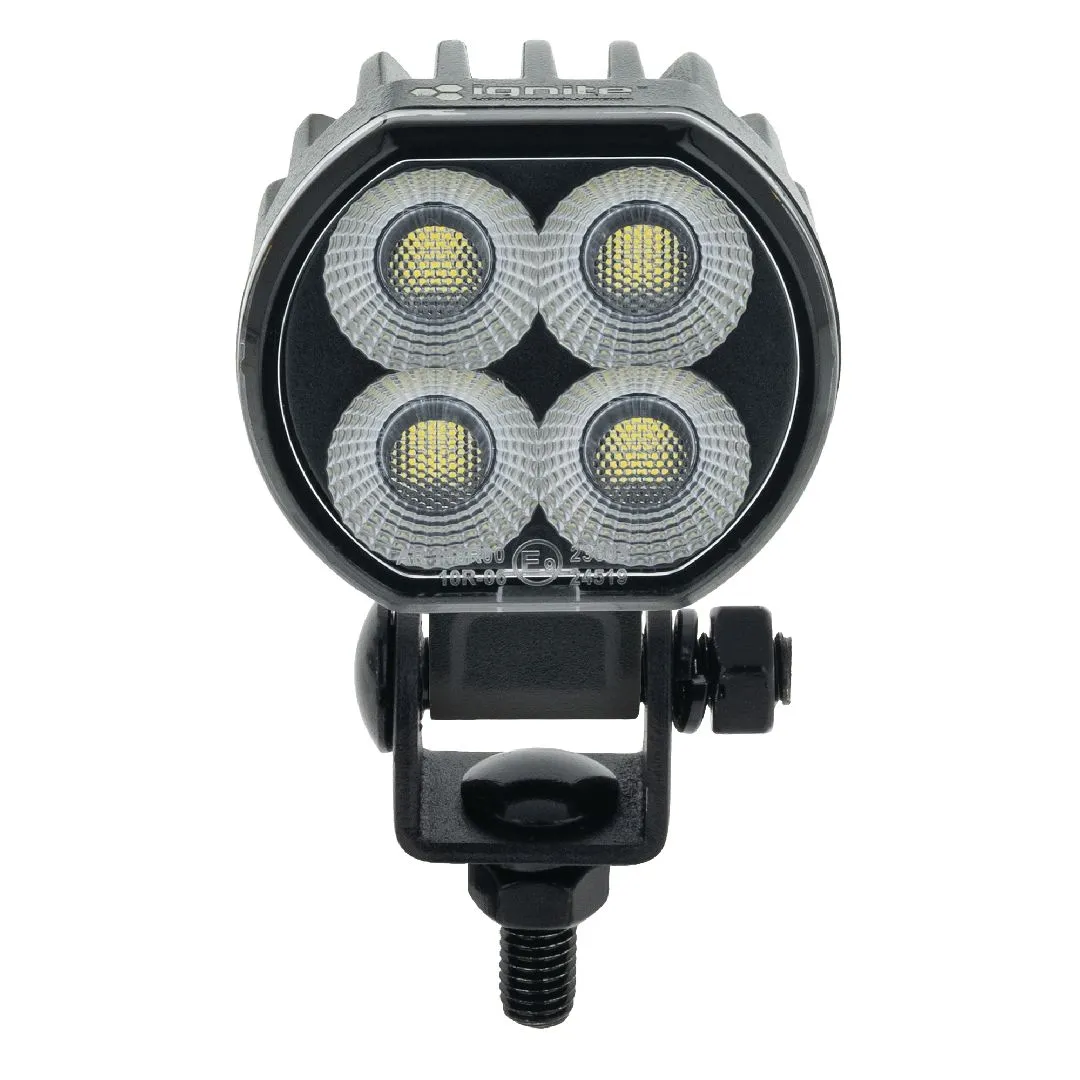

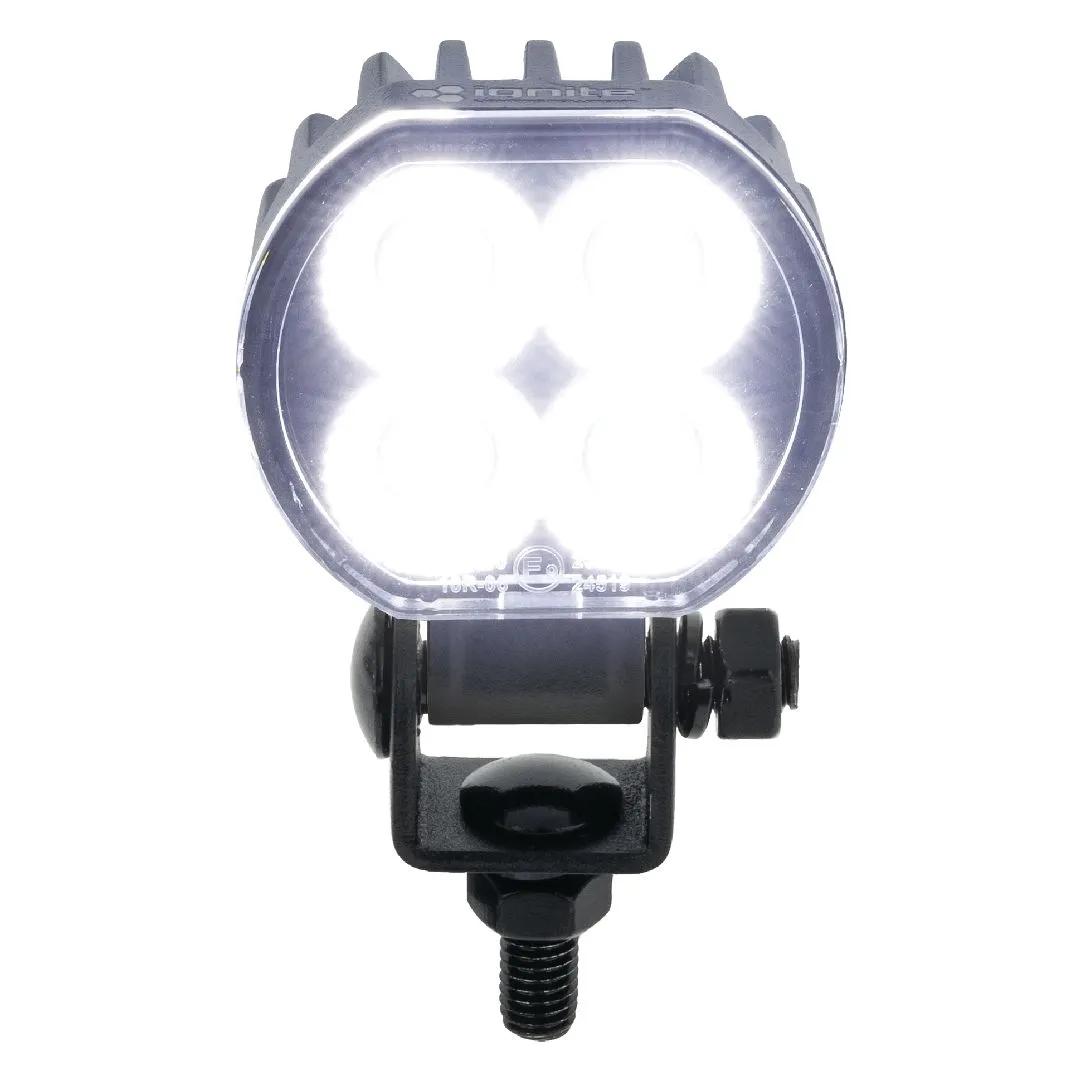

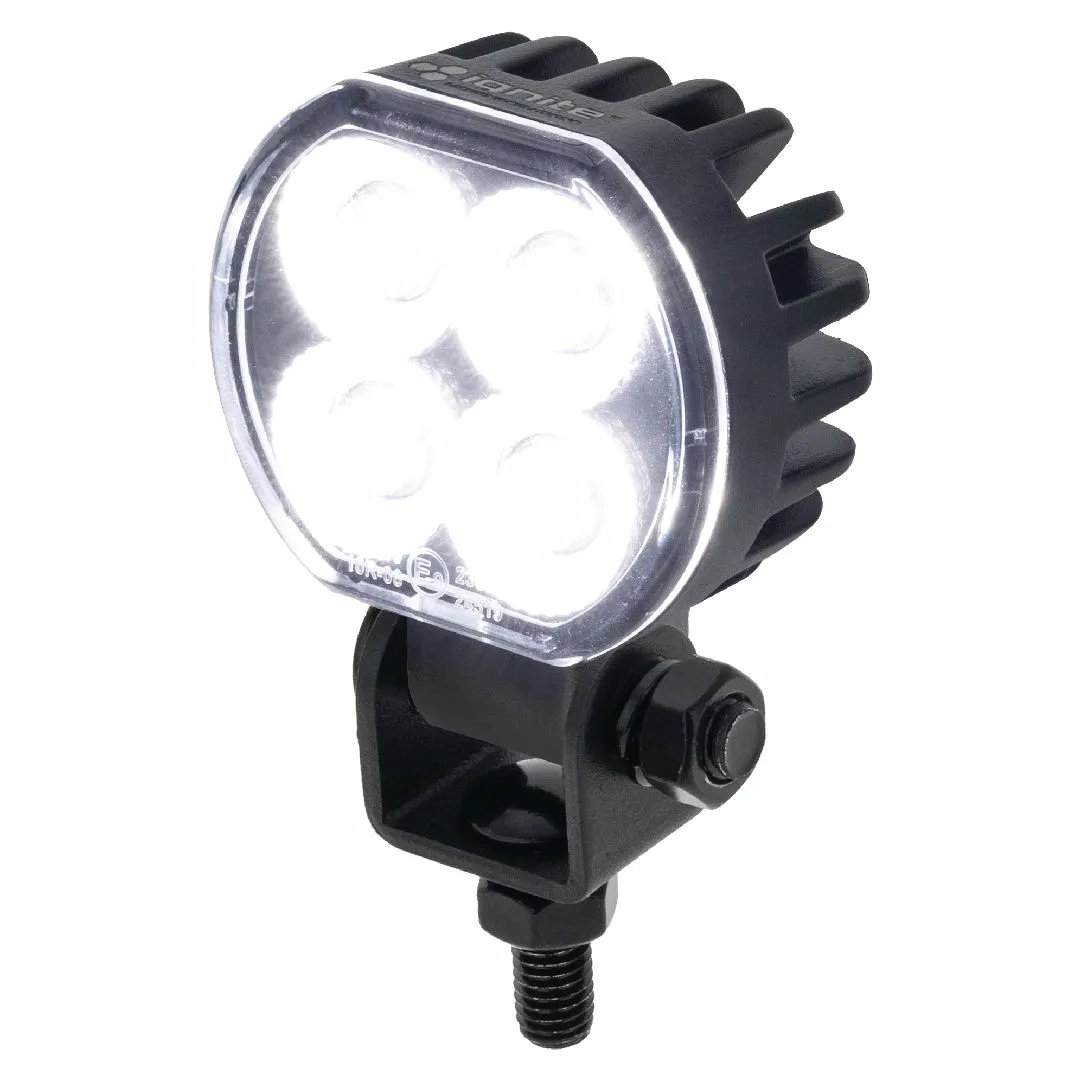

The Ignite 2.3" Round LED Worklamp combines compact dimensions with powerful illumination, making it ideal for 4WDs, trucks, agricultural machinery, commercial vehicles and equipment. Four high-intensity Philips LEDs deliver 2,400 raw lumens and 1,365 effective lumens, while the 60° flood beam provides broad and consistent light coverage around the vehicle or work area.

Designed to withstand demanding conditions, the worklamp features a rugged die-cast aluminium housing, frameless polycarbonate lens and integrated thermal management. Its IP68 and IP69K rating provides strong protection in harsh environments, while voltage and polarity protection help ensure reliable operation.

Key Features

  • 16W output with 4 x 4W high-intensity Philips LEDs
  • 2,400 raw lumens / 1,365 effective lumens
  • 60° flood beam for wide area lighting
  • 6000K crisp white light output
  • 10–32V multi-voltage operation
  • 1 lux at 29 metres
  • Integrated Electronic Thermal Management (ETM)
  • Die-cast aluminium housing with integrated heat sink
  • Frameless polycarbonate lens and optical reflector system
  • Stainless steel single-bolt mounting bracket and hardware

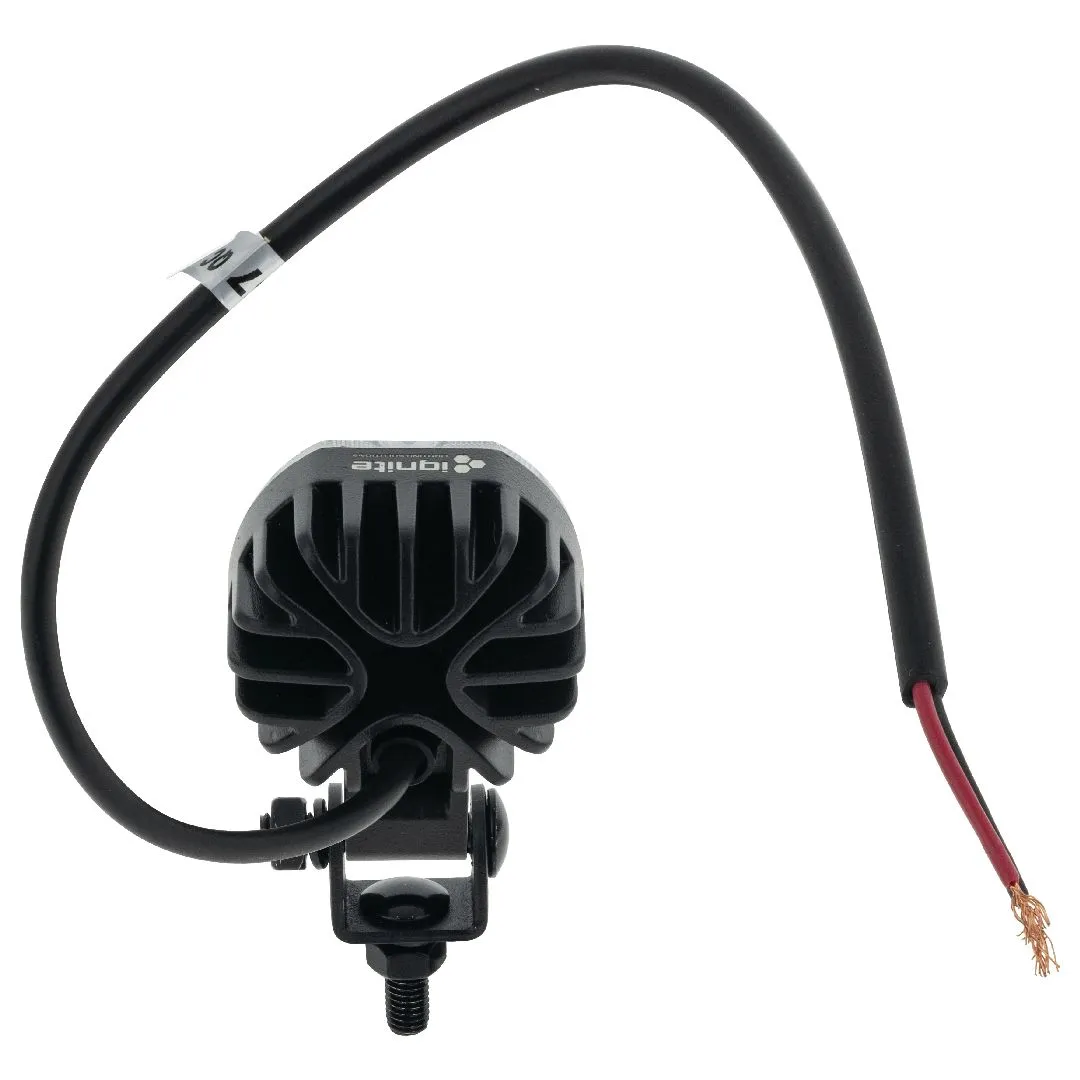

  • 300mm lead with two bare wires
  • Over/under voltage and reverse polarity protection
  • UV, water and shock resistant
  • 20,000-hour LED lifespan
  • ECE R10 and CE approved, EMC compliant and CISPR 25 Class 3 certified
  • IP68 and IP69K rated
  • 3 year warranty

Specifications

  • Voltage: 10–32V
  • Power: 16W
  • Raw Lumens: 2,400
  • Effective Lumens: 1,365
  • Colour Temperature: 6000K
  • Current Draw: 1.33A @ 12V / 0.66A @ 24V
  • Peak Beam Intensity: 816cd
  • Dimensions: 58mm (W) x 101mm (H) x 35mm (D)
  • Operating Temperature: -40°C to +60°C

Product Specifications

SKU IWL0404RF
Barcode # 9356659851533
Brand Ignite
