Product Description

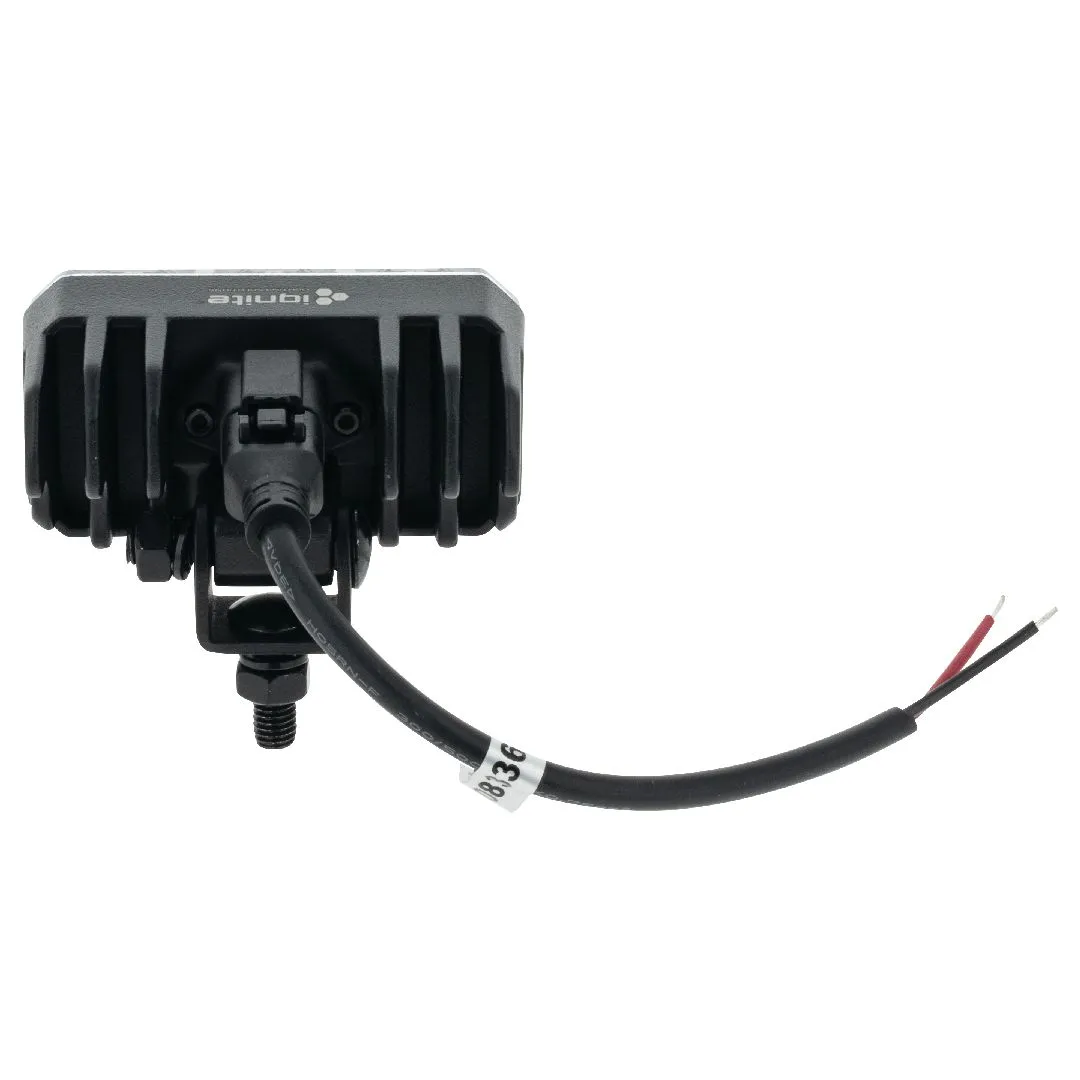

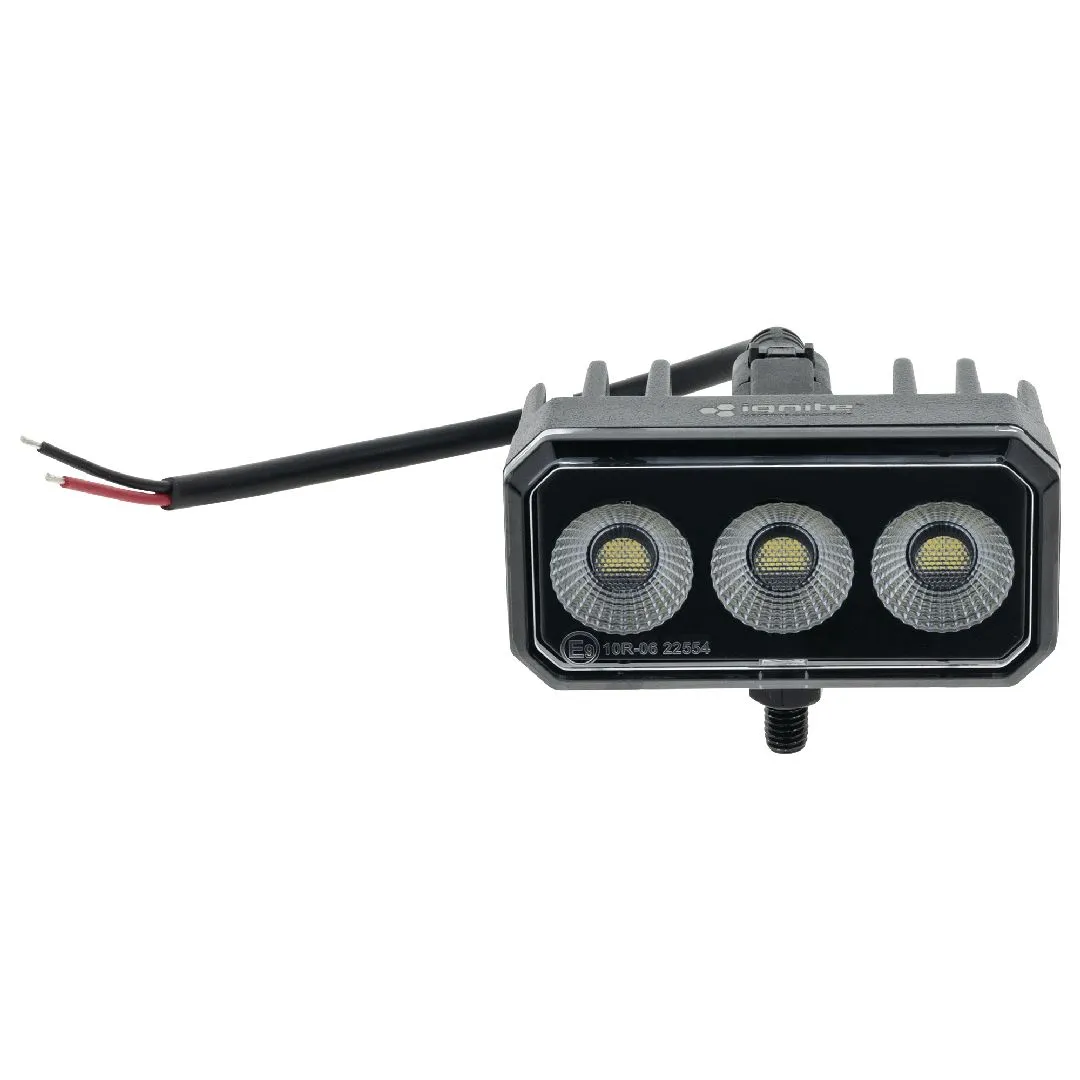

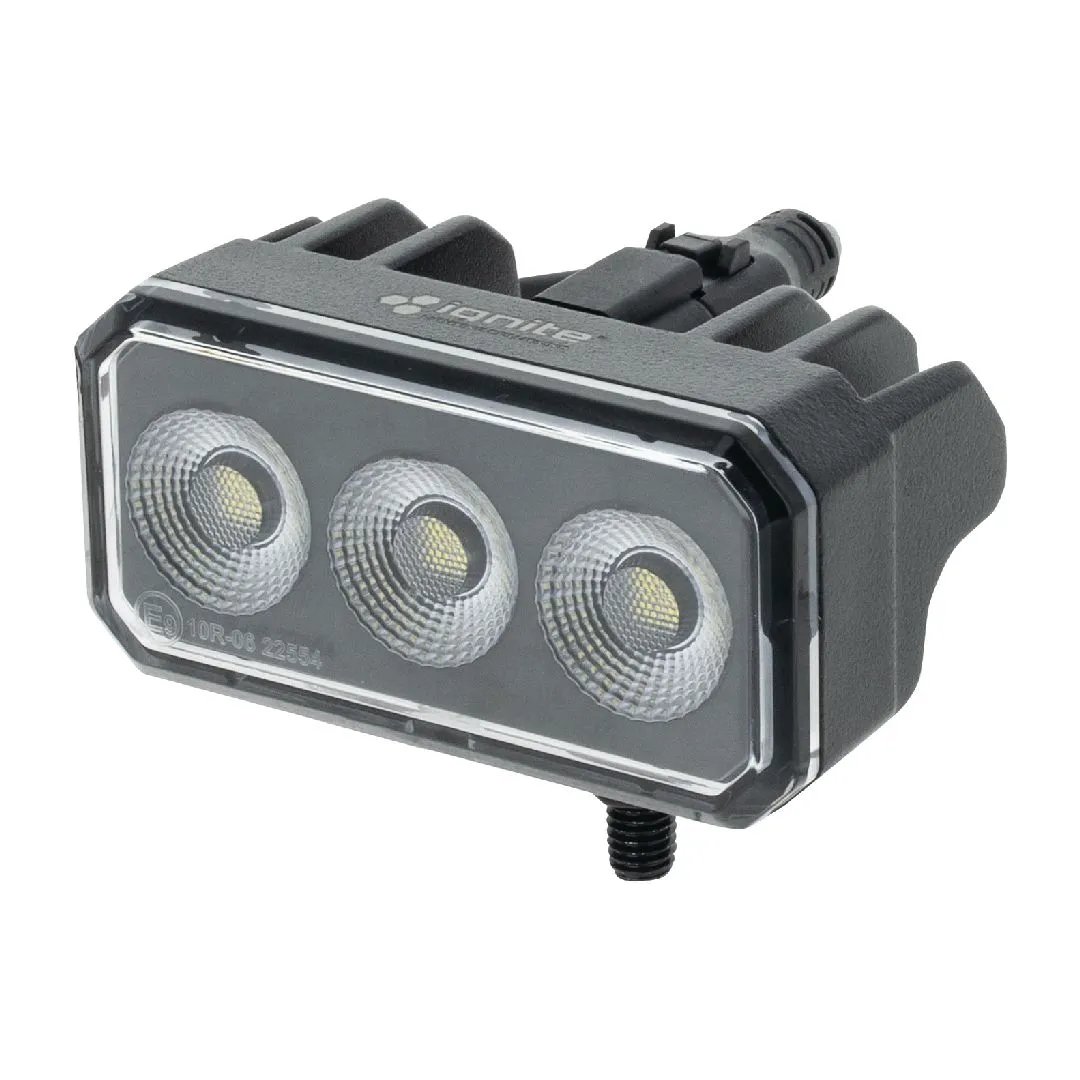

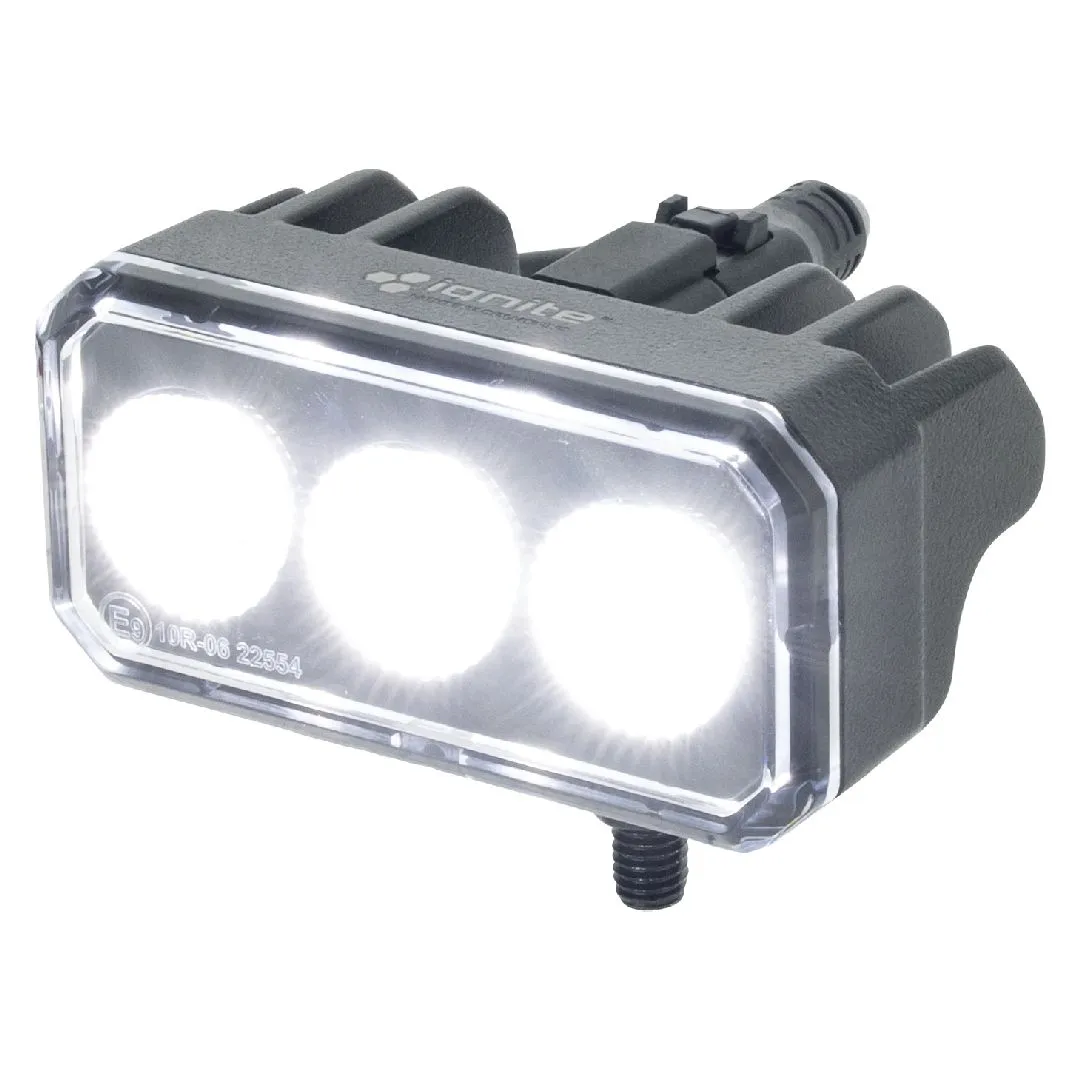

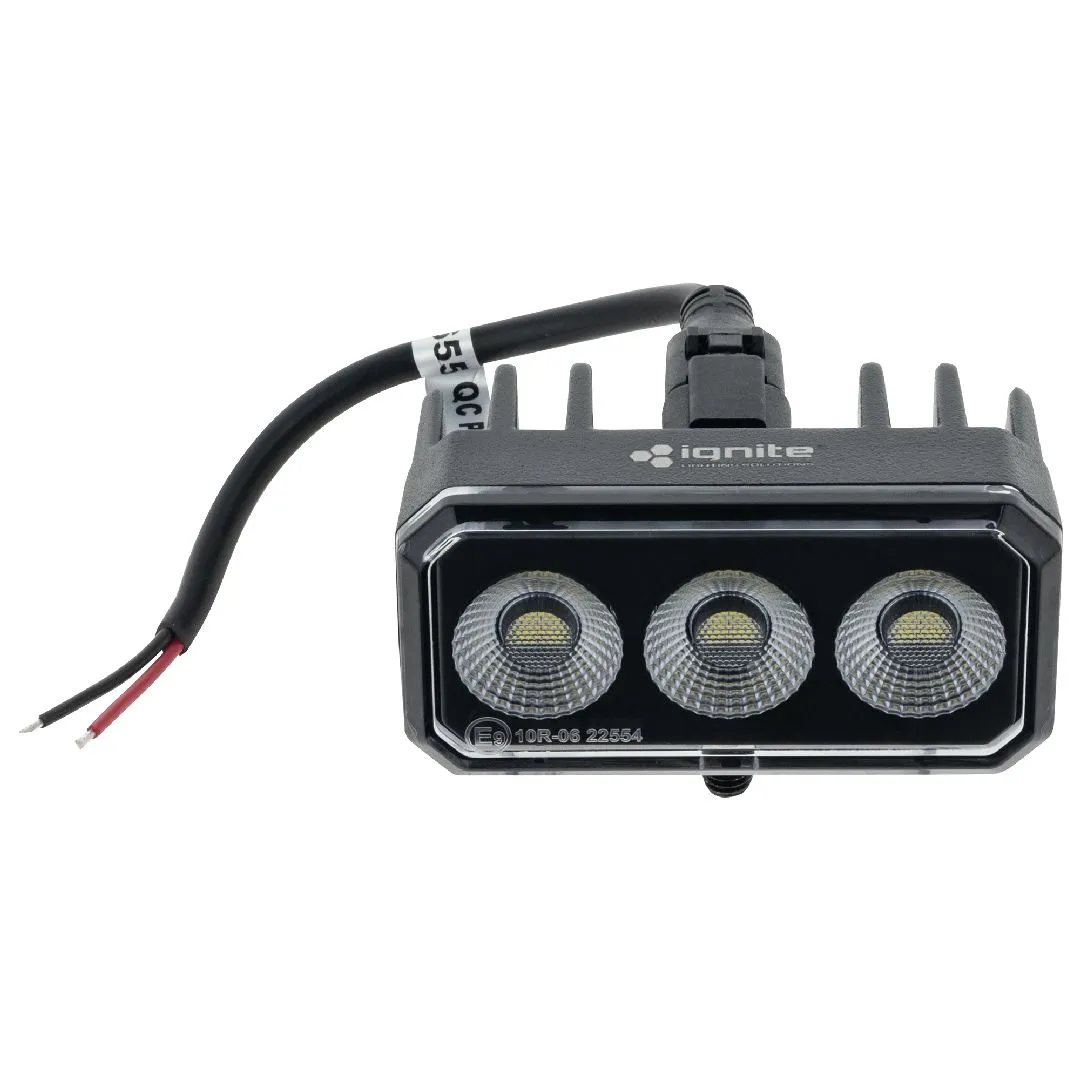

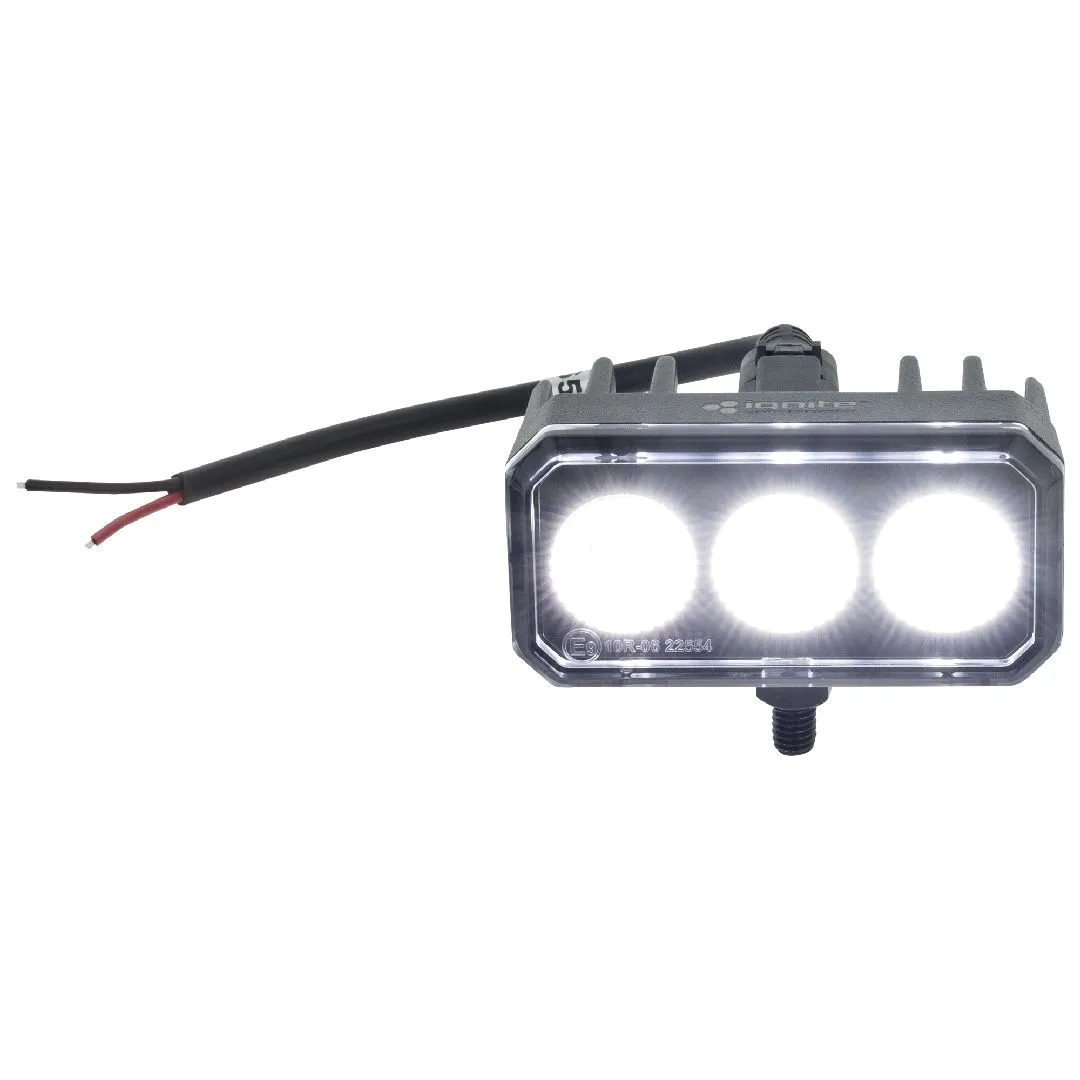

The Ignite 3.5" Rectangle LED Worklamp is a compact, high-performance lighting solution designed for 4WDs, commercial vehicles, agricultural equipment, machinery and work vehicles. Featuring three high-intensity Philips LEDs, it produces 1,800 raw lumens and 1,192 effective lumens with a wide 60° flood beam for excellent area illumination.

Built for demanding environments, the worklamp features a tough die-cast aluminium housing, frameless polycarbonate lens and integrated heat sink. With IP68 and IP69K protection, it is resistant to water, UV exposure and shock, making it ideal for harsh automotive and industrial applications.

Key Features

  • 12W output with 3 x 4W high-intensity Philips LEDs
  • 1,800 raw lumens / 1,192 effective lumens
  • 60° flood beam for wide area illumination
  • 6000K crisp white light output
  • 10–32V multi-voltage operation
  • 1 lux at 27.5 metres
  • Integrated Electronic Thermal Management (ETM)
  • Die-cast aluminium housing with integrated heat sink
  • Frameless polycarbonate lens and optical reflector system
  • Stainless steel single-bolt mounting bracket and hardware
  • Integrated 2-pin Deutsch connector
  • Over/under voltage and reverse polarity protection
  • UV, water and shock resistant
  • 20,000-hour LED lifespan
  • ECE R10 and CE approved, EMC compliant and CISPR 25 Class 3 certified
  • IP68 and IP69K rated
  • 3 year warranty

Specifications

  • Voltage: 10–32V
  • Power: 12W
  • Raw Lumens: 1,800
  • Effective Lumens: 1,192
  • Colour Temperature: 6000K
  • Current Draw: 1A @ 12V / 0.5A @ 24V
  • Peak Beam Intensity: 780cd
  • Dimensions: 90mm (W) x 54mm (H) x 51mm (D)
  • Weight: 200g
  • Operating Temperature: -40°C to +60°C

Product Specifications

SKU IWL0304F
Barcode # 9356659851595
Brand Ignite
