Ignite IDL2306K 9" Round Slimline Laser LED Driving Light Kit

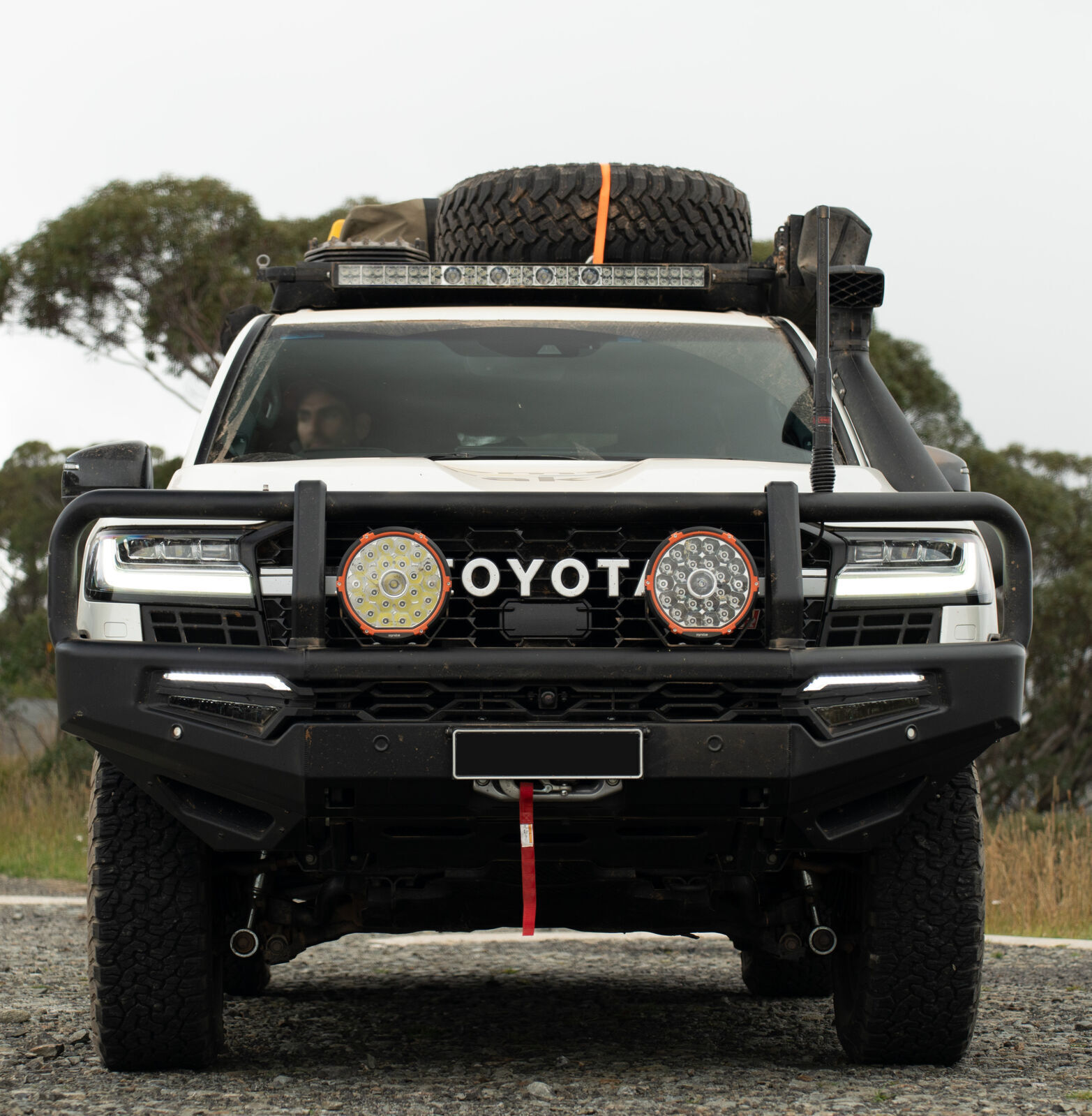

The Ignite IDL2306K 9" Round Slimline Laser LED Driving Light Kit is a high-performance lighting upgrade designed to deliver outstanding long-distance visibility, durability and reliability. Supplied as a complete pair with a wiring harness, switch, interchangeable bezels and Ignite stickers, this kit is ideal for 4WDs, touring vehicles, work vehicles and night driving applications.

Each driving light uses advanced Laser LED and LED illumination technology, combining 22 x 6W high-intensity LP LEDs with 1 x 20W high-intensity Osram laser LED. The result is a powerful driving beam pattern produced by an 8° laser pencil beam and 10° LED spot beam, helping provide excellent road visibility and long-range performance.

Orange or Black Bezel Options

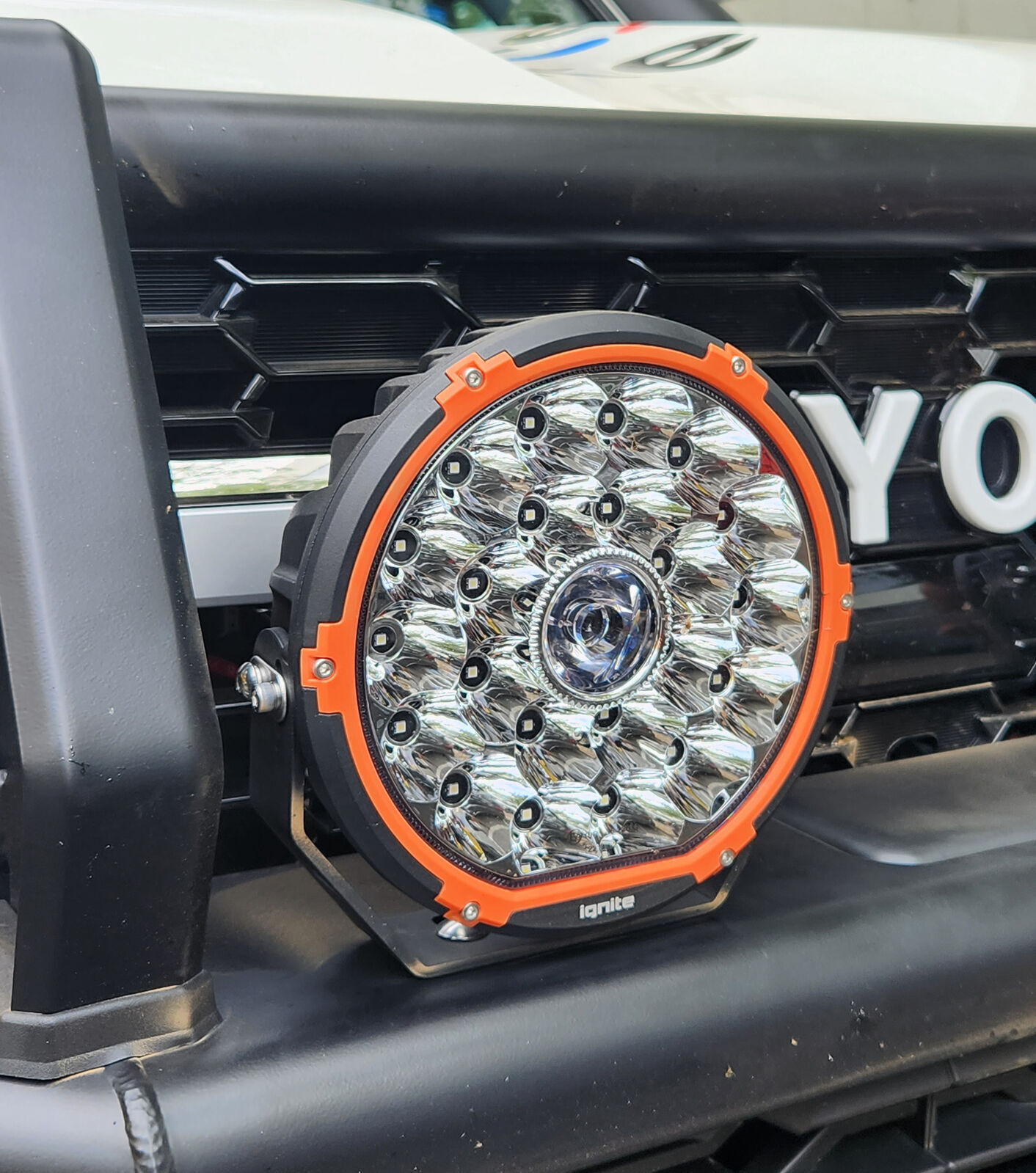

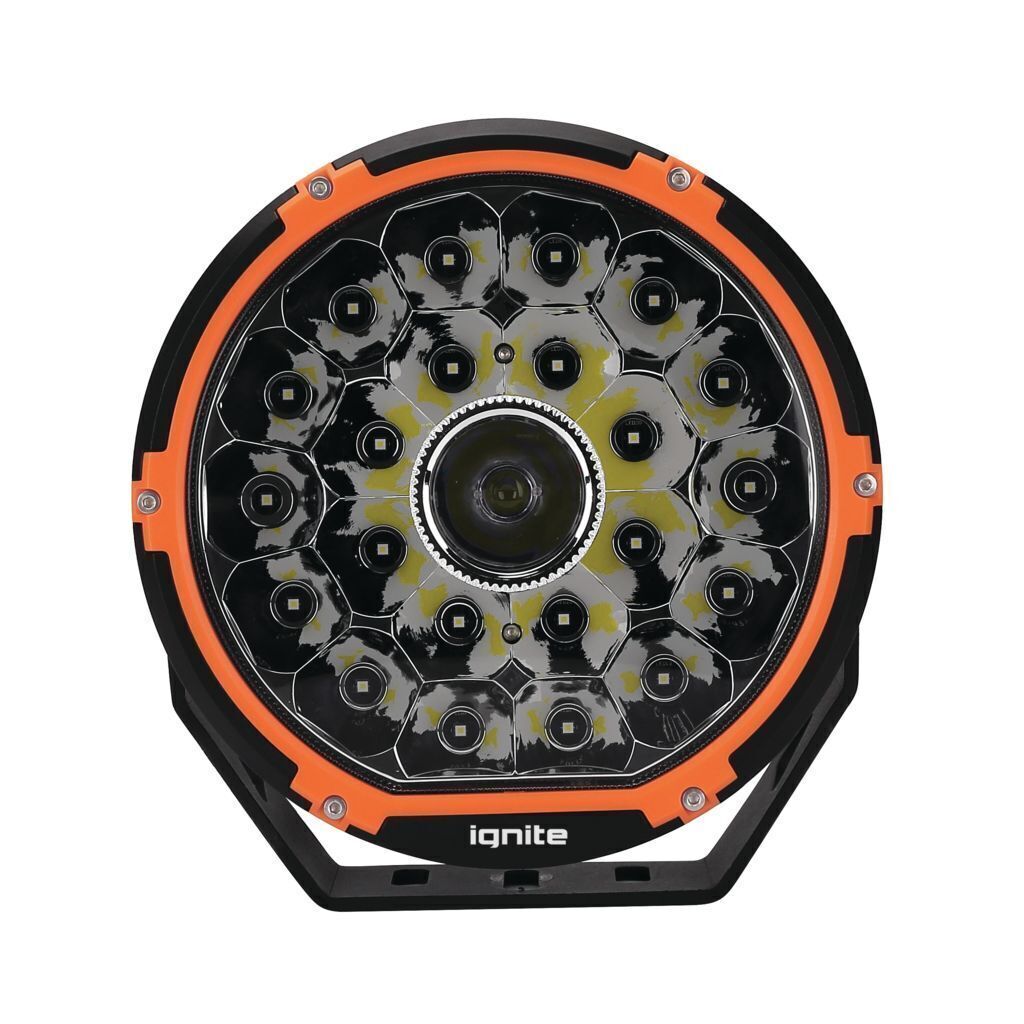

This kit is supplied with orange bezels fitted to the driving lights. A set of black bezels is also included in the box and supplied separately. Customers can choose to have either the orange bezels or the black bezels fitted to the driving lights.

Built for Harsh Conditions

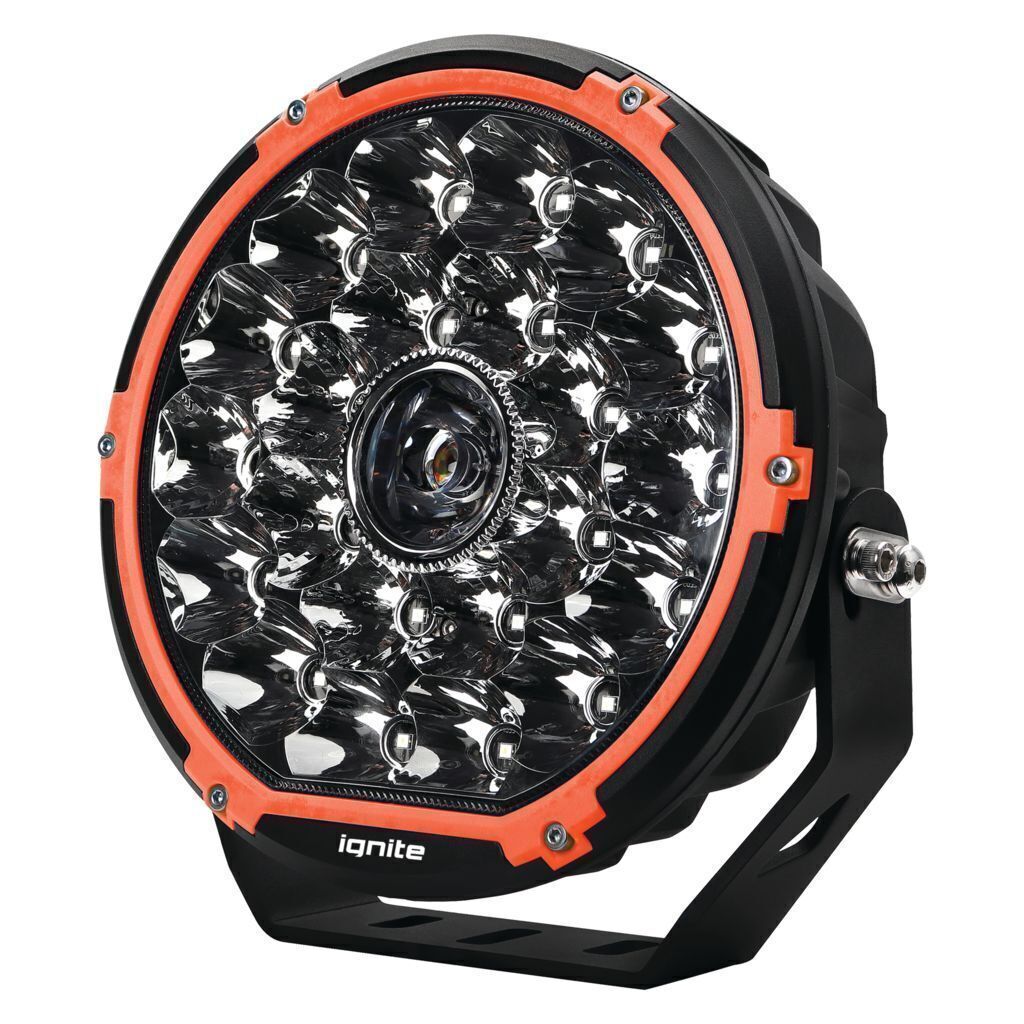

The Ignite 9" Round Slimline Laser LED Driving Lights feature a tough black powder-coated die-cast aluminium alloy housing with an integrated heat sink and pressure-equalising vent. This durable construction helps manage heat during extended use while providing excellent resistance to UV, water, shock, rust, corrosion and freezing conditions.

With IP68 and IP69K ratings, shock resistance up to 15G, and an operating temperature range of -40°C to +60°C, the IDL2306K kit is made to perform in demanding environments. It is also ECE R10 and CE approved and now comes backed by an impressive 8 Year Warranty.

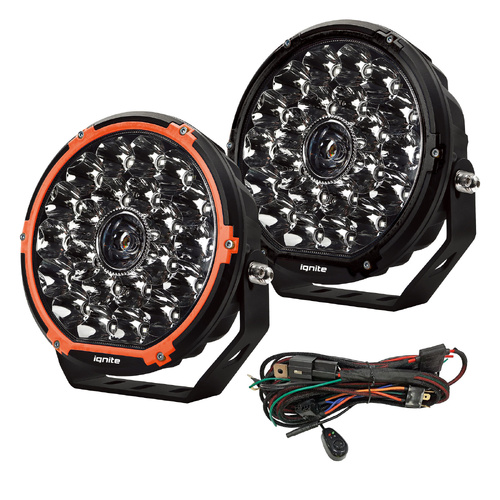

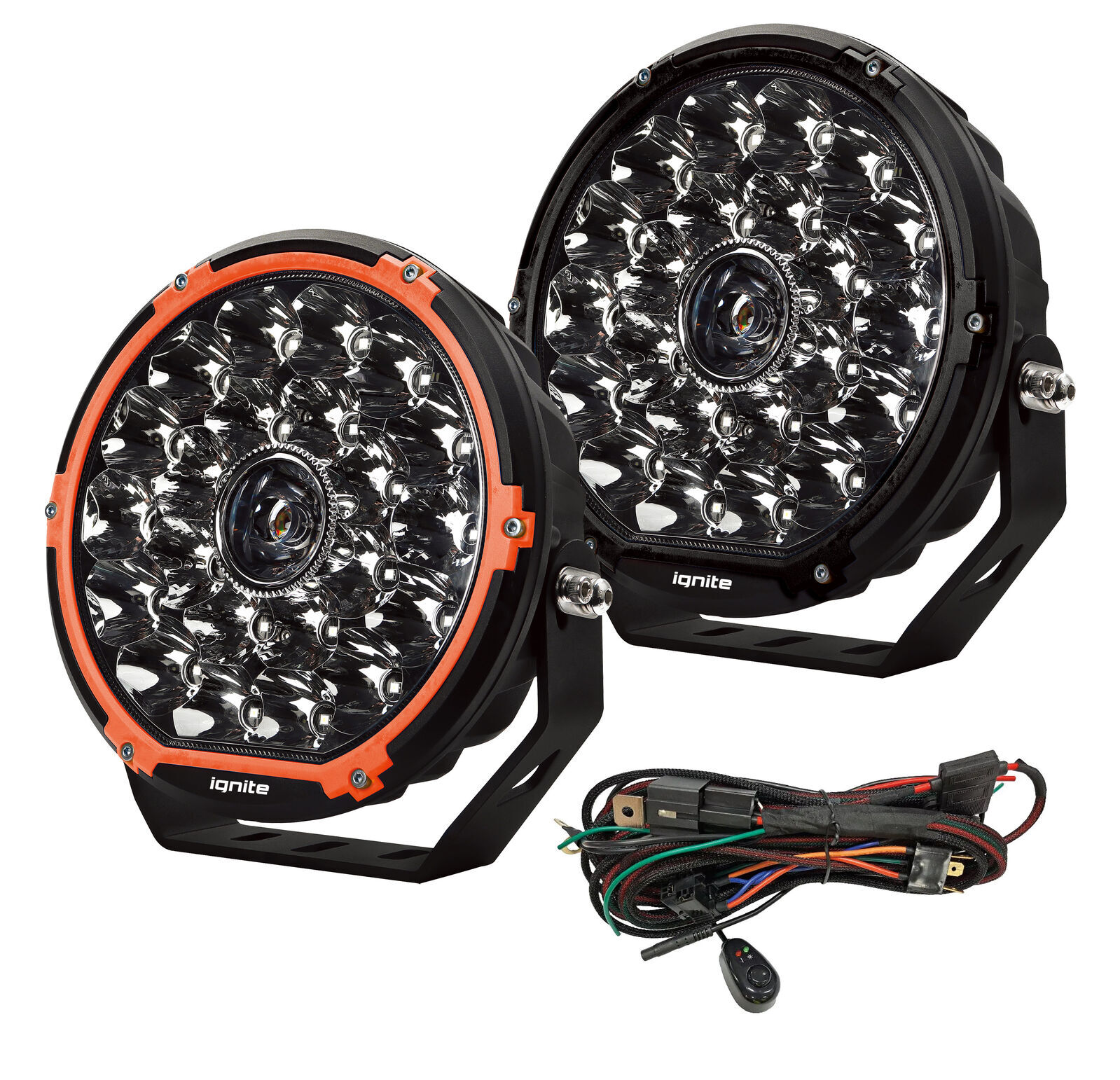

Kit Includes

• 2 x Ignite 9" Round Slimline Laser LED Driving Lights with orange bezels fitted
• 2 x Black bezels, supplied separately and not fitted
• 1 x Wiring harness with switch
• 2 x Ignite stickers

Key Features

• Complete Laser LED driving light kit
• Part Number: IDL2306K
• Includes 2 x 9" round slimline driving lights
• Combined Laser LED and LED illumination technology

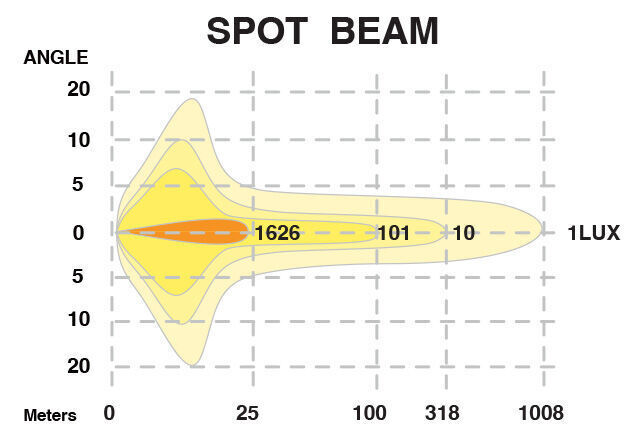

• 8° laser pencil beam and 10° LED spot beam
• Powerful driving beam pattern for long-distance visibility
• 12,300 effective lumens per light
• 14,500 raw lumens per light
• 1 Lux visibility up to 1,008m per light
• Multivolt 9 - 36V input
• Black powder-coated die-cast aluminium alloy housing
• Integrated heat sink and pressure-equalising vent
• IP68 and IP69K rated
• UV, water, shock, rust, corrosion and freeze resistant
• Shock resistant up to 15G
• ECE R10 and CE approved
• Backed by an 8 Year Warranty

Specifications

Specifications below are for a single LED driving light.

Type	LED
Beam Type	Spot / Driving Beam
Mount	Single Bolt
IP Rating	IP68 and IP69K Rated
Voltage	Multivolt 9 - 36V
Power	152W
LED Configuration	22 x 6W High-Intensity LP LEDs and 1 x 20W High-Intensity Osram Laser LED
Effective Lumens	12,300
Raw Lumens	14,500
Colour Temperature	6,000K
Current Draw	11.4A @ 12V, 5.7A @ 24V
Maximum Visibility	1 Lux @ 1,008m
Peak Beam Intensity	1,016,000cd

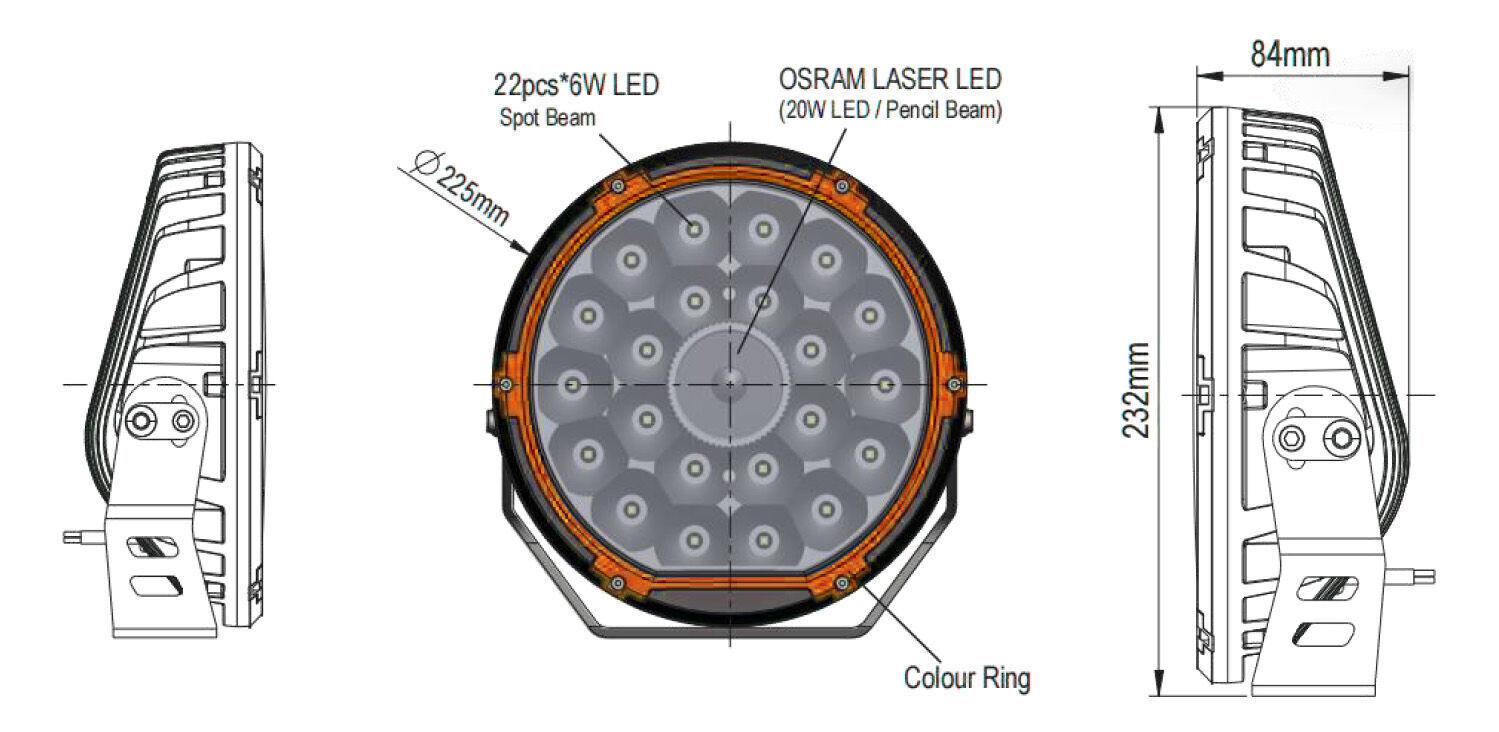

Height	232mm
Width	225mm
Depth	84mm
Operating Temperature	-40°C to +60°C
Approvals	ECE R10 and CE Approved
Warranty	8 Years
